Challenger ST

Challenger ST Truck Service Bodies: Your Ultimate Mobile Workstations

Rugged and Reliable

Discover the epitome of durability in mobile workstations with the Challenger ST service bodies, built with galvanneal steel.

Generous Storage and Cargo Space

Explore multiple compartments and spacious cargo areas, providing ample room for all your work truck equipment.

Optimal Organization

Standardized storage compartments with material trays and customizable options like drawer packages and hooks ensure efficient organization for your tools.

Enhanced Security Features

Experience peace of mind with keyed-alike locks, double-panel steel doors, and weather-tight seals, protecting your assets from theft and the elements.

Trusted by Professionals

Fleet managers and independent contractors rely on the Challenger ST for its tough construction, convenient storage solutions, and prolonged service life.

Tailored Solutions for Special Requirements

Count on us for custom-built bodies catering to unique specifications and special needs. Whether it’s adapting for specific equipment or accommodating unique requirements, our team crafts tailored solutions to match your distinct needs.

Explore the features of The CHALLENGER ST


' . $image['alt'] . '
  1. Base Body

    Base body constructed of 14-gauge A-40 galvanneal steel

  2. Body Fender

    Body fender panels constructed of with 16-gauge A-40 galvanneal steel and are bolt-on so they can be easily swapped or replaced

  3. Compartment Doors

    Compartment doors are constructed of two 20-gauge panels of A-40 galvanneal steel with 16-gauge hat-channel stiffeners in between for added strength and rigidity

' . $image['alt'] . '
  1. Bolt-on Latches

    Stainless-steel bolt-on latches feature keyed-alike lock cylinders with double-bitted keys for long-life, convenience and enhanced security

  2. Bolt-on Door Hinges

    Fully concealed bolt-on door hinges are constructed of heavy powder coated steel with a stainless-steel pin for security, strength and ease of maintenance/repair

  3. Compartment Shelving

    Adjustable compartment shelving is constructed of 14-gauge high-spangle galvanneal steel supporting up to 250 lbs. and feature moveable metal dividers

  • Features
  • Options / Packages
  • Specs
  • Literature
  • request_information

  • Construction
    Combination of lock bolt and weld to provide unbeatable durability. Floor understructure welded for structural integrity.

  • Compartment Tops
    Smooth seamless surface to enhance appearance.

  • Cutouts
    Openings in intermediate panels between horizontal and adjacent vertical compartments provides extended storage between compartments.

  • Door Hinges
    Concealed, bolt-on style provides increased security and clean appearance.

  • Door Latches
    Your choice of bolt on rotary or stainless steel latches.

  • Lock Cylinders
    Are keyed alike with double-bitted keys and are power door lock ready for easy after-market installation.

  • Door Striker
    Adjustable, bolt-on.

  • Vertical Doors
    Spring-loaded door holders to hold doors in the fully open position and assist in closing.

  • Horizontal Doors
    Use vinyl coated aircraft quality cables for support in open position.

  • Automotive Style Door Seal
    Seals compresses against flat door surface for optimum protection against water leakage.

  • Drip Rail
    Concealed to provide extra protection against water leakage.

  • Fender Panels
    Bolt-on die-stamped with radius wheel opening.

  • Tailgate
    Two point slam-locking featuring anti-rack/rattle hardware.

  • Shelving
    Bolt-in material trays with dividers.

  • Powder Coat Finish
    Body exterior, compartment interiors, and cargo area surfaces are finished in a durable, corrosion resistant white powder coat.

  • Undercoating
    On bottom of floor and wheelwells.

  • Bar-Lock Master Locking System

  • LED Compartment
    Strip Light Kit

  • Bumpers

  • Folding Steps & Grab Handles

  • Fuel Fill (Alum.)

  • Hitches

  • Light Kit – LED

  • Tie-Down Ring

  • Top Pak

  • Trays

  • Treadbrite Overlay

  • Aluminium Stone Guard

  • Cab Guard

  • Pipe Vise Bracket

  • Amber Strobe Light

  • High Roof

  • Low Sliding Roof

  • Tank Compartment

  • Tank Holder

  • Workbench Bumper

  • Drawers

STANDARD CONSTRUCTION:

  • An overall 40 ga. galvanneal construction – Two-sided zinc coated galvanneal (40 oz. zinc coating per square foot of steel) provides maximum rust and corrosion resistance.
  • Body Sides are constructed using plated lock-bolt fasteners to eliminate rust-causing elements,
    and promote a corrosion-free, long-lasting product.
  • Floor understructure, rigidly welded for structural integrity and durability. Mounting point’s re-enforced w/U-channel
Galvanneal Steel Body Components
18 Gauge 16 Gauge 14 Gauge 12 Gauge 10 Gauge
Compartment Doors (double-panel) Tailgates (double-panel) Bulkheads Floors Longitudinals
Fender Panels Compartment Tops
Compartment Bottoms End Panels – Front & Rear
Intermediate Panels Loadspace Inside Centers
Shelving

Crossmember – Front & Rear (7 Gauge)

DECODE YOUR SERVICE BODY

This tool can be used as a tool to help you decode many naming conventions STAHL Truck Bodies employs to identify their product. It won’t do all the work for you, but can easily get you on the right track to choosing a new service body from STAHL.

  • DIMENSIONAL DATA:
  • CST82 - 6.5 ft.
  • CST98 - 8 ft.
  • CST110 - 9 ft.
  • CST134 - 11ft.

Single Rear Wheel (SRW) – “V-Side” Compartment Dimensions

Model Approx. Wt.
Depth		 Cab-to-Axle
Opening		 A B C D Compartment Clear Door Openings
E F G
CST82VVS 910 lbs. 37″,40″,42″ 21.0″ 47.19″ 13.41″ 81.6″ 16.5″ x 36.37″ 45.31″ x 14.69″ 8.66″ x 36.67″

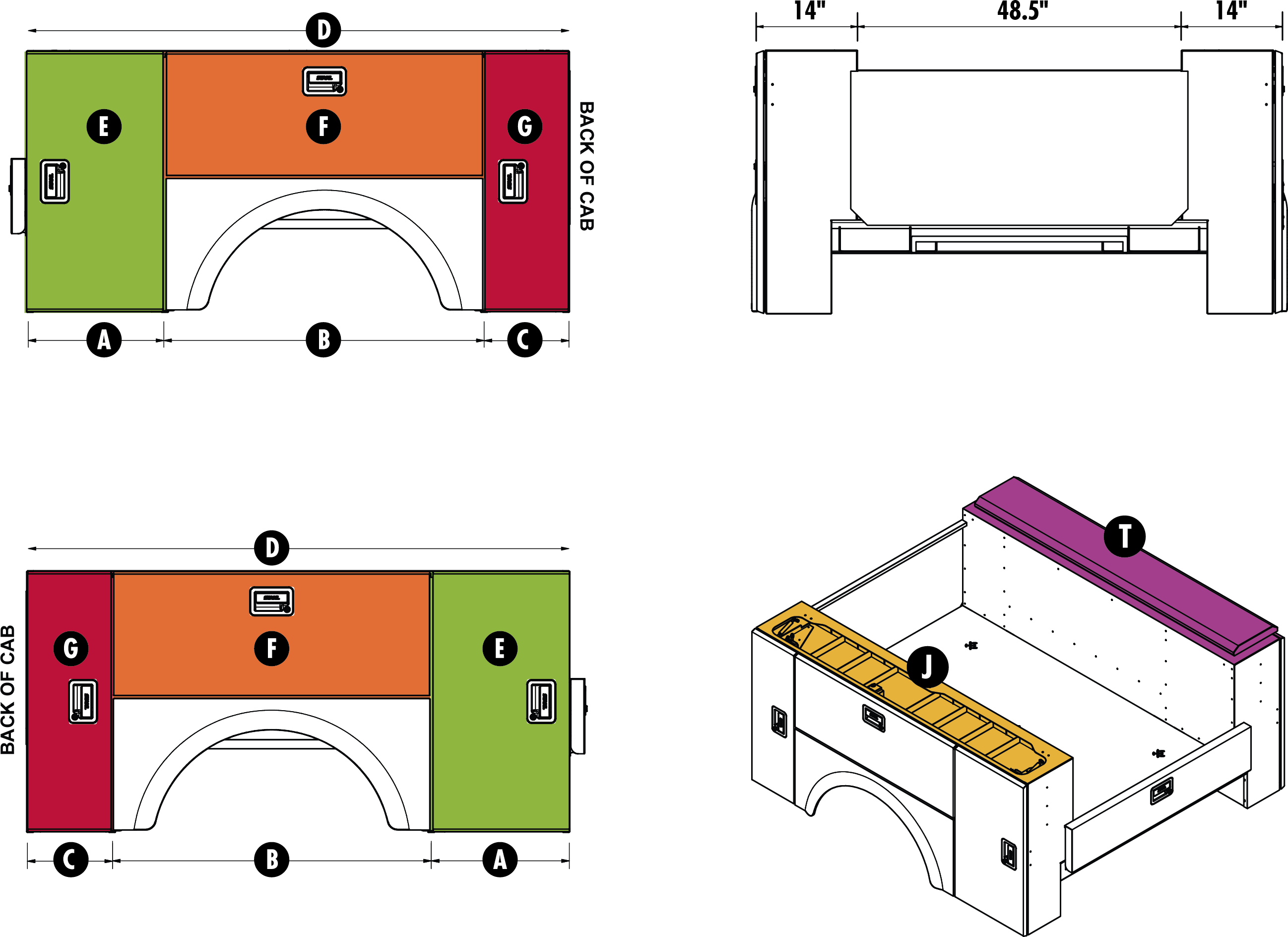

COMPARTMENT LAYOUT:

CST 82 Compartment Layout

Single Rear Wheel (SRW) – “V-Side” Compartment Dimensions

Model Approx. Wt. Cab-to-Axle
Opening		 A B C D Compartment Clear Door Openings
E F G
CST98VVS 990 lbs. 55″, 56″ 29.81″ 47.19″ 21.00″ 98″ 25.06″ x 36.67″ 45.31″ x 14.69″ 16.5″ x 36.37″

Single Rear Wheel (SRW) – “C-Side” Compartment Dimensions

Model Approx. Wt. Cab-to-Axle
Opening		 A B C D Compartment Clear Door Openings
E F E H I
CST98CVS 990 lbs. 55″, 56″ 29.81″ 47.19″ 21.00″ 98″ 25.06″ x 36.67″ 45.31″ x 14.94″ 16.5″ x 36.37″ 66.00″ x 14.69″ 16.5″ x 17.44″

COMPARTMENT LAYOUT:

CST 98 Compartment Layout

Single Rear Wheel (SRW) – “V-Side” Compartment Dimensions

Model Approx. Wt. Cab-to-Axle A B C D Compartment Clear Door Openings
E F G
CST110VVS 1,100 lbs. 60″ 33.44″ 47.19″ 29.81″ 110″ 28.69″ x 36.67″ 45.31″ x 14.69″ 25.31″ x 36.37″

Dual Rear Wheel (DRW) – “V-Side” Compartment Dimensions

Model Approx. Wt. Cab-to-Axle A B C D Compartment Clear Door Openings
E F G
CST110VVD 1,245 lbs. 60″ 33.44″ 47.19″ 29.81″ 110″ 28.69″ x 36.37″ 45.31″ x 14.69″ 25.31″ x 36.37″
CST110VVD 1,280 lbs. 60″ 33.44″ 47.19″ 29.81″ 110″ 28.69″ x 36.37″ 45.31″ x 14.69″ 25.31″ x 36.37″

COMPARTMENT LAYOUT:

CST 110 Compartment Layout

Model Approx. Wt. Cab-to-Axle Floor Width A K B C D Compartment Clear Door Openings
E L F G
CST134VVD 1,425 lbs. 84″ 48.5″ 33.44″ 24.00″ 47.19″ 29.81″ 134″ 28.69″ x 36.37″ 19.44″ x 36.37″ 45.31″ x 14.94″ 25.31″ x 36.37″
CST134VVD 1,465 lbs. 84″ 52.5″ 33.44″ 24.00″ 47.19″ 29.81″ 134″ 28.69″ x 36.37″ 19.44″ x 36.37″ 45.31″ x 14.94″ 25.31″ x 36.37″

COMPARTMENT LAYOUT:

CST 134 Compartment Layout

Challenger ST Installation Drawings

CST110 Bodies

GM/Chevy
CST110 – 60″ CA GM/Chevy Install Drawing

Ford (2017 – Current Model Year)
CST110 – 60″ CA Ford Install Drawing

Ford (2016 and Prior Model Years)
CST110 – 60″ CA Ford Install Drawing

RAM
CST110 – 60″ CA RAM Install Drawing

CST134 Bodies

GM/Chevy
CST134 – 84″ CA GM/Chevy Install Drawing

Ford (2017 – Current Model Year)
CST134 – 84″ CA Ford Install Drawing

Ford (2016 and Prior Model Years)
CST134 – 84″ CA Ford Install Drawing

RAM
CST134 – 84″ CA RAM Install Drawing
